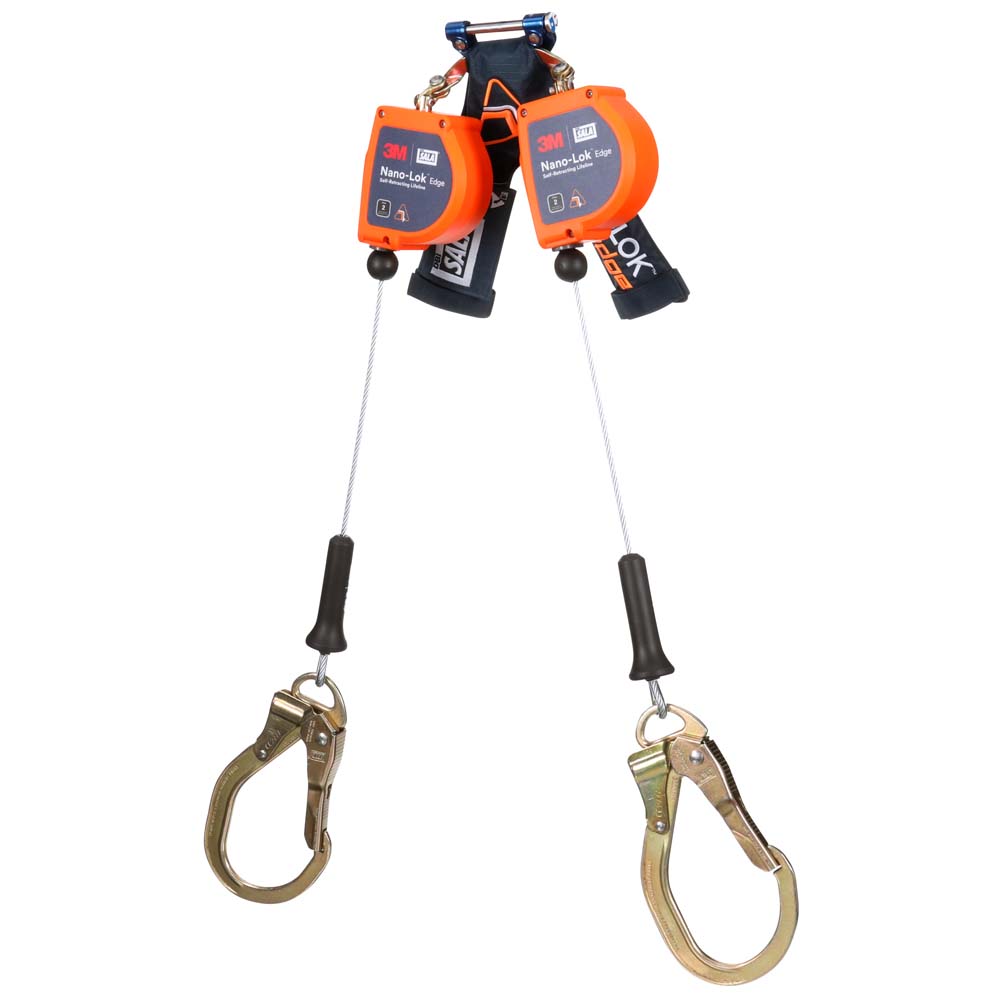

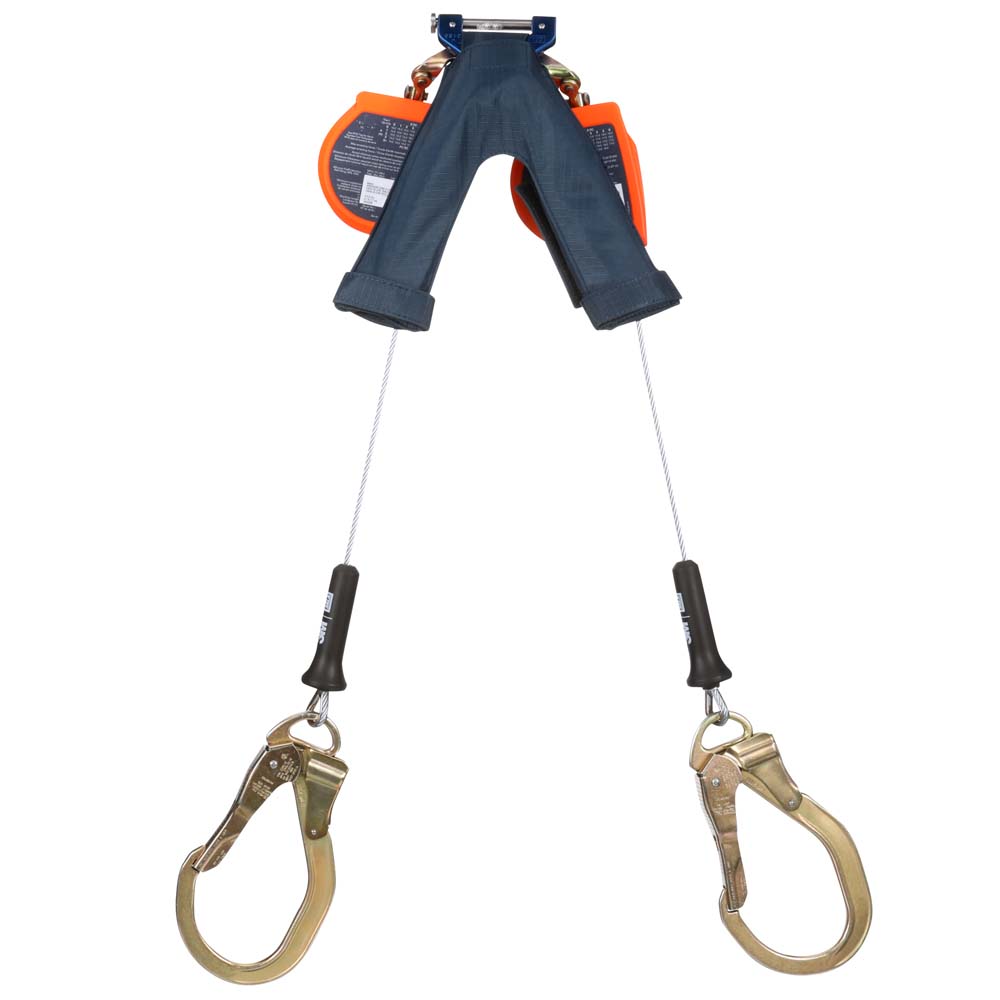

3M DBI-SALA Nano-Lok Edge Twin-Leg Personal 8-Foot Self-Retracting Lifeline
$561.99 to $758.99
- Designed for foot-level tie-off and leading-edge applications
- Compact Design
- Quick activating speed sensing brake system
3M DBI-SALA Nano-Lok Edge Twin-Leg Personal 8-Foot Self-Retracting Lifeline
3M DBI-SALA Nano-Lok Edge Self-Retracting Lifeline's compact design is easily worn on the user's back and stays out of the way; it can also be used as a lanyard replacement. Whether the application requires single or twin-leg configurations, mounting to an overhead anchor, or connection directly to a harness, there are numerous models to choose from to suit a variety of applications. 3M DBI-SALA Nano-Lok Edge Self-Retracting Lifeline is designed to lock quickly stopping a fall within inches - providing more protection at low heights. In addition, tension is maintained on the lifeline, which helps reduce potential dragging and trip falls.
Features:
- Designed for foot-level tie-off and leading-edge applications
- Compact Design
- Quick activating speed sensing brake system
- Durable thermoplastic housing
- Built-in connector for direct attachment to harness
- High-capacity external energy absorber and impact indicator
- RFID equipped and compatible with the inventory management system
- Available in multiple styles and configurations
Specifications:
- ANSI Class Level: Class 2
- Color Family: Orange
- Harness Connection Hook Material: Stainless Steel
- Harness Connection Type: Single Pin Connector
- Housing Material: Nylon Thermoplastic
- Housing Type: Thermoplastic
- Install Type: Portable & Removable
- Leg Count: Twin-Leg
- Lifeline Hook Material Options:
- Zinc Plated Steel
- Aluminum
- Lifeline Length (Imperial): 8.0 ft
- Lifeline Length (Metric): 2.44 m
- Lifeline Material: Galvanized Cable
- Maximum Number of Users: One
- Mounting Type: Direct to Harness Back
- Net Weight (Imperial): 8.6 lb
- Net Weight (Metric): 3.9 kg
- Overall Length (Imperial): 8.0 ft
- Overall Length (Metric): 2.4 m
- Product Color: Orange
- Product Series: Nano-Lok edge
- Recommended Application: Leading Edge
- Recommended Industry: Oil & Gas
- Metal Fabrication: Construction
- Specifications Met:
- 29 CFR OSHA 1926.502
- 29 CFR OSHA 1910.140
- ANSI/ASSP Z359.14-2021
- Style: Dual Leg
- Weight Capacity (Imperial): 420.0 lb.
- Weight Capacity (Metric): 190.0 kg
Available Options:
- Hook Type:

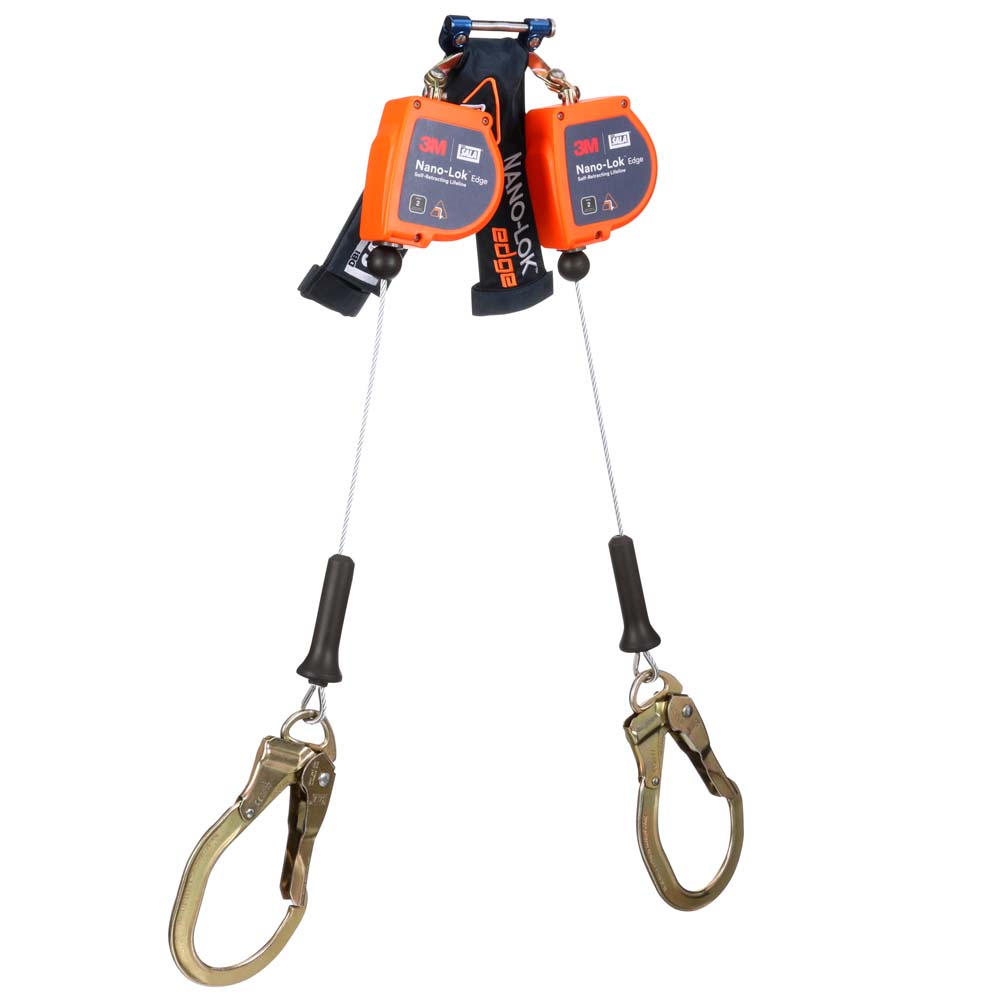

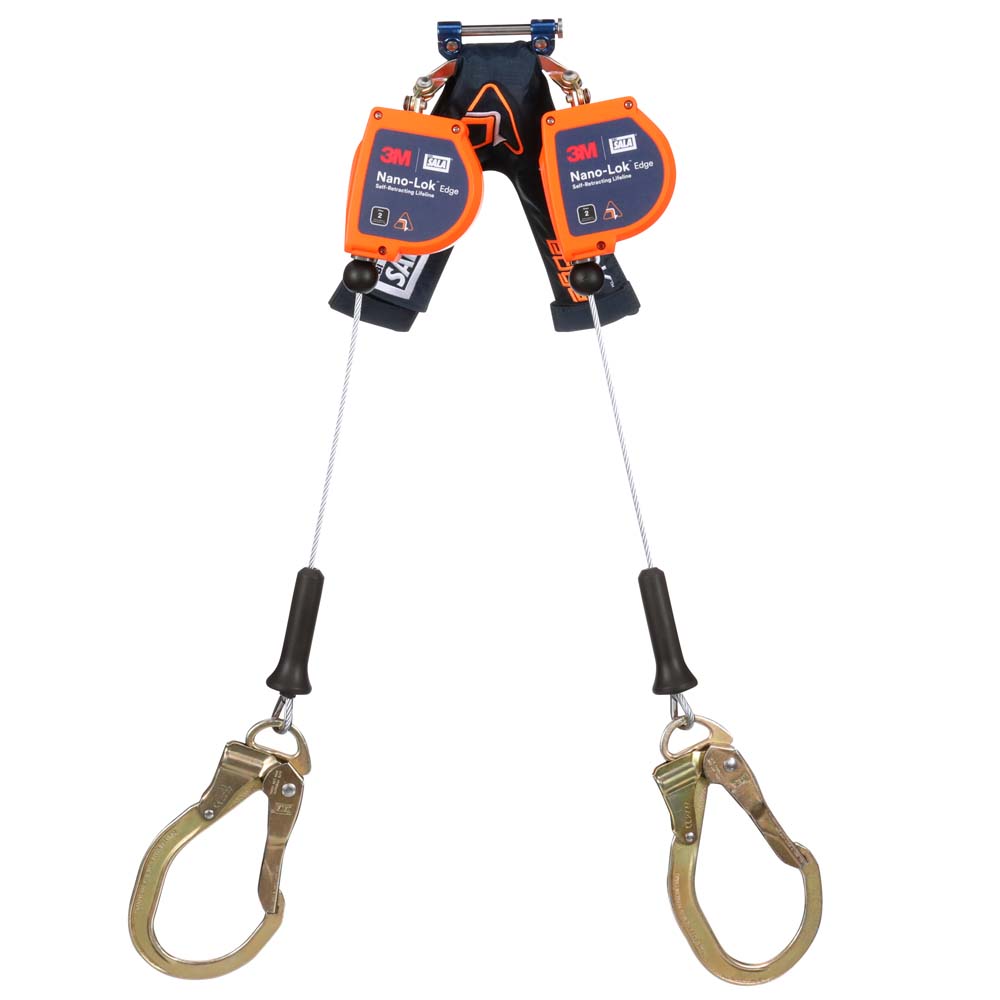

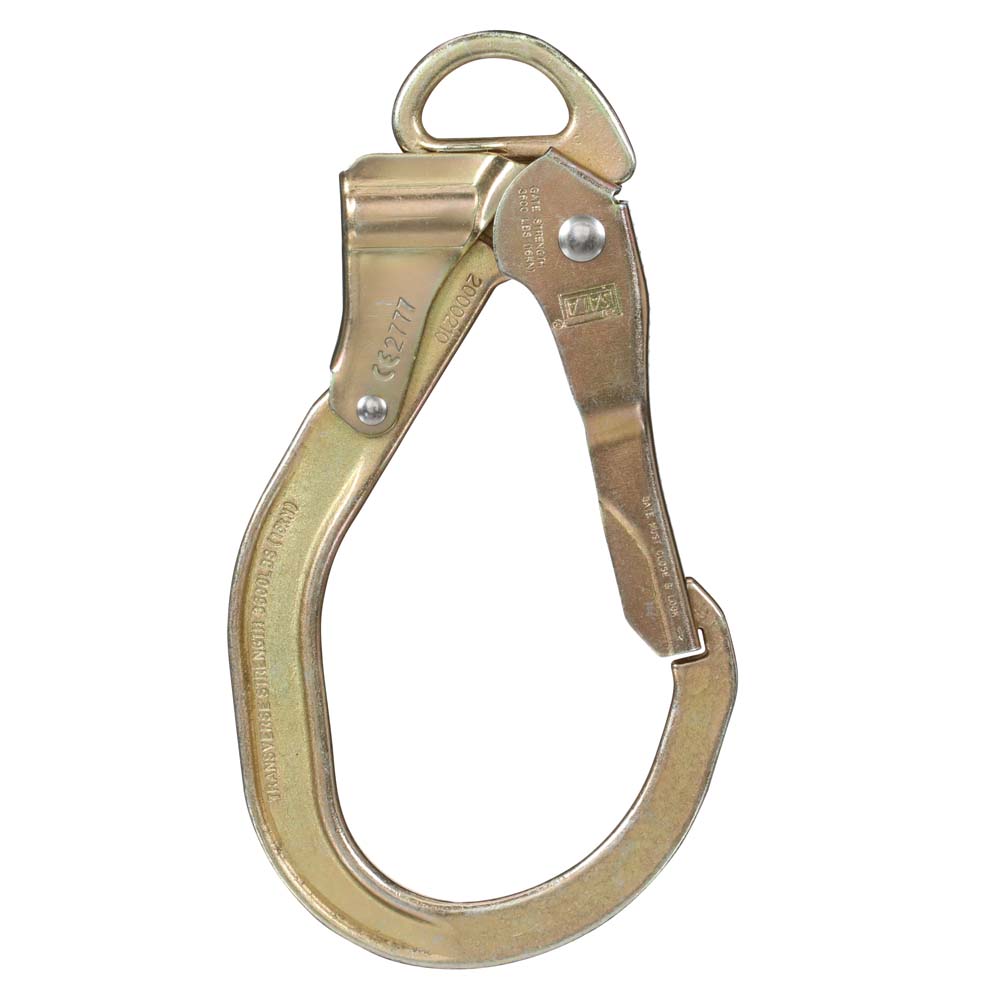

- Steel Rebar Lock Hook (3500276)

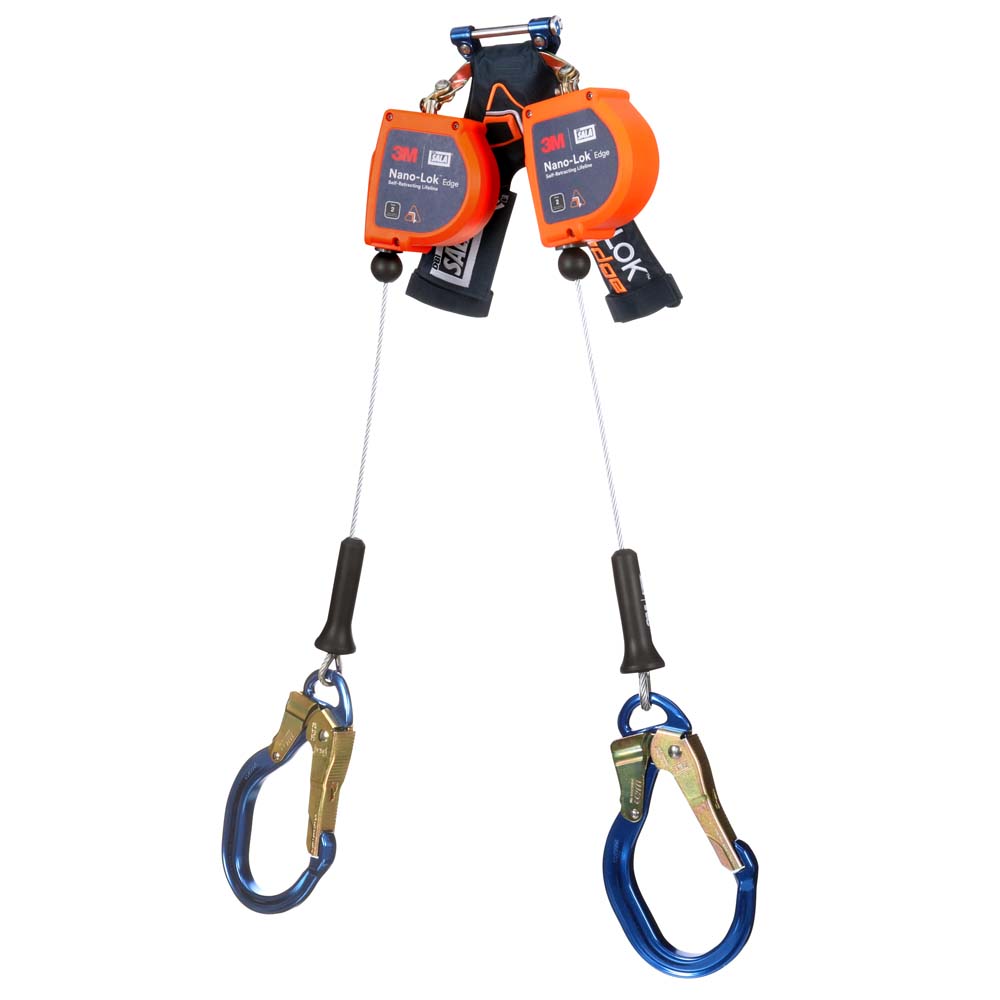

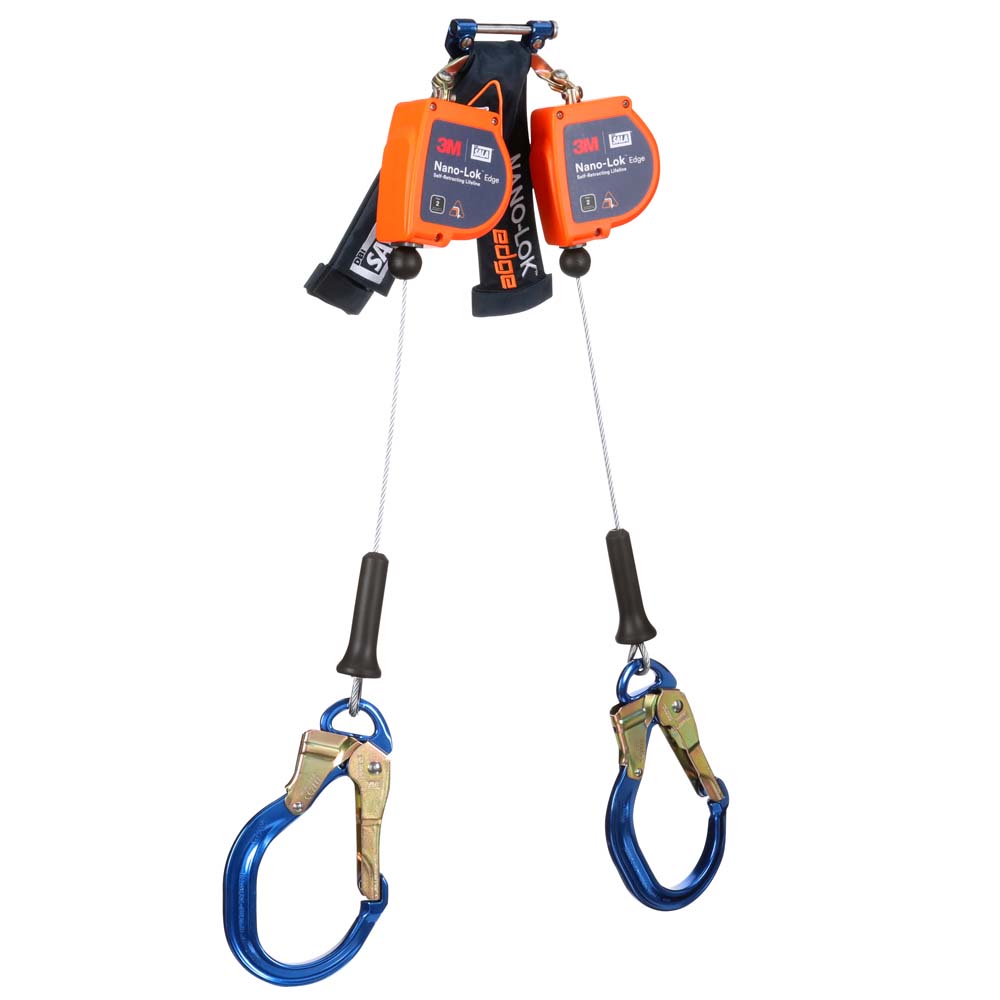

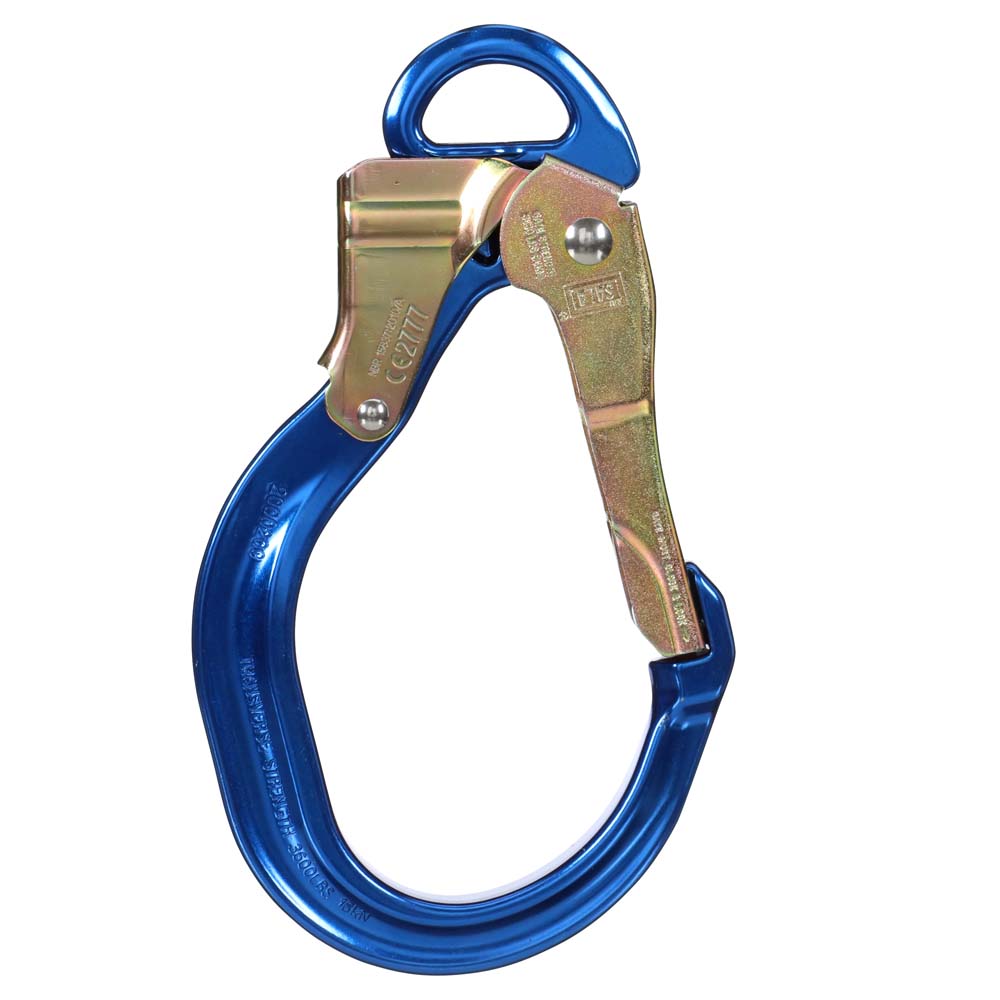

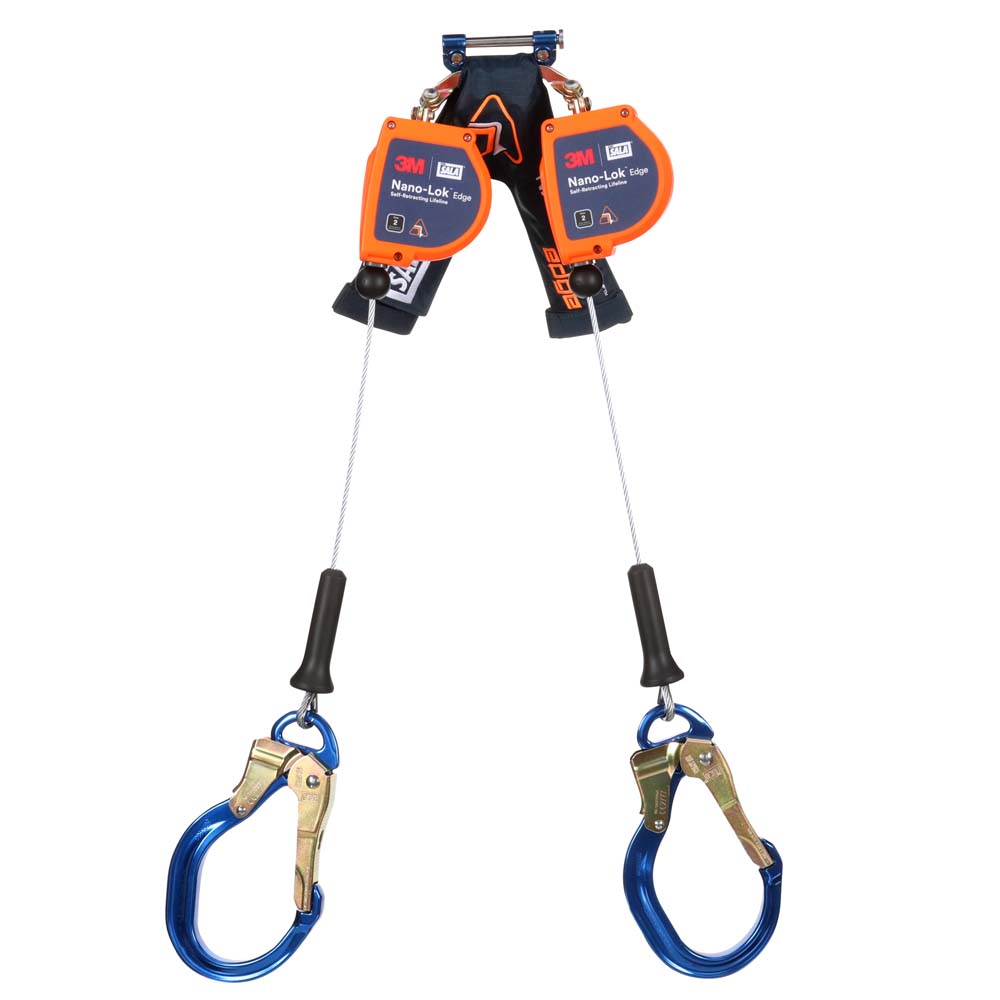

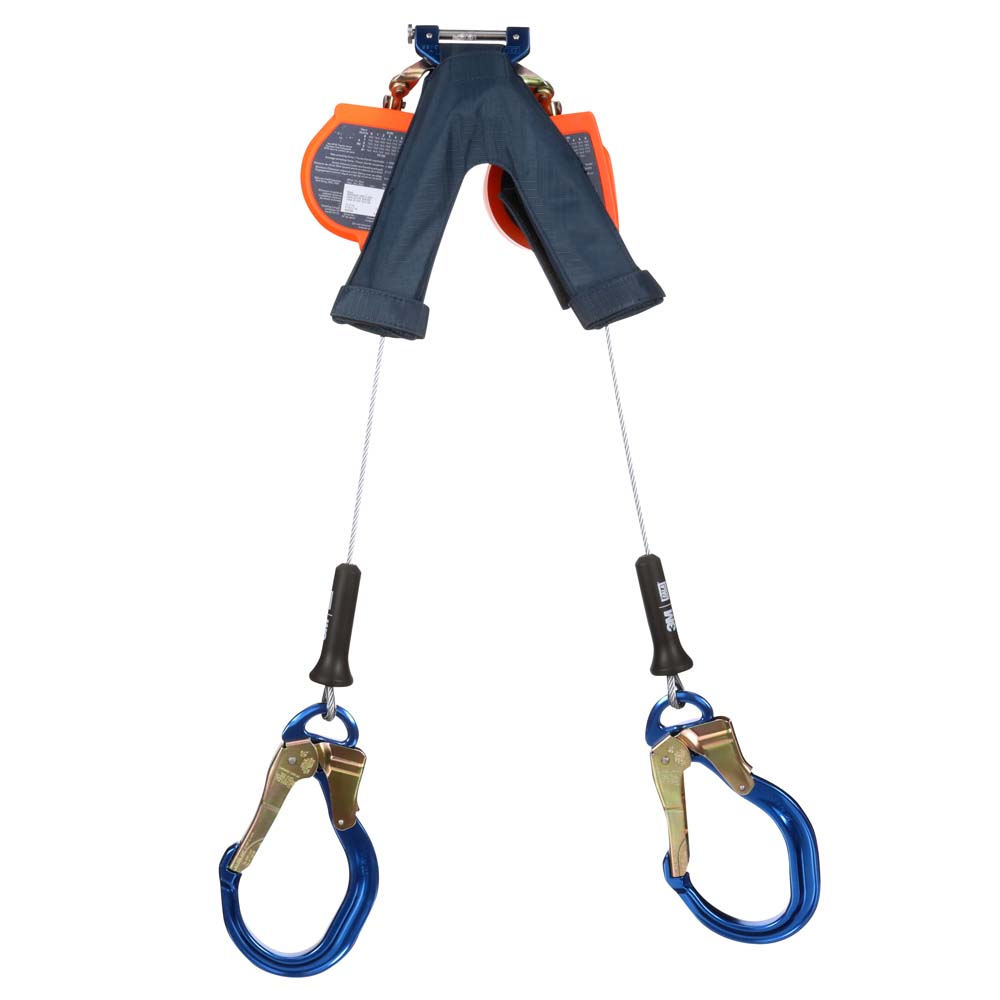

- Aluminum Rebar Lock Hook (3500277)

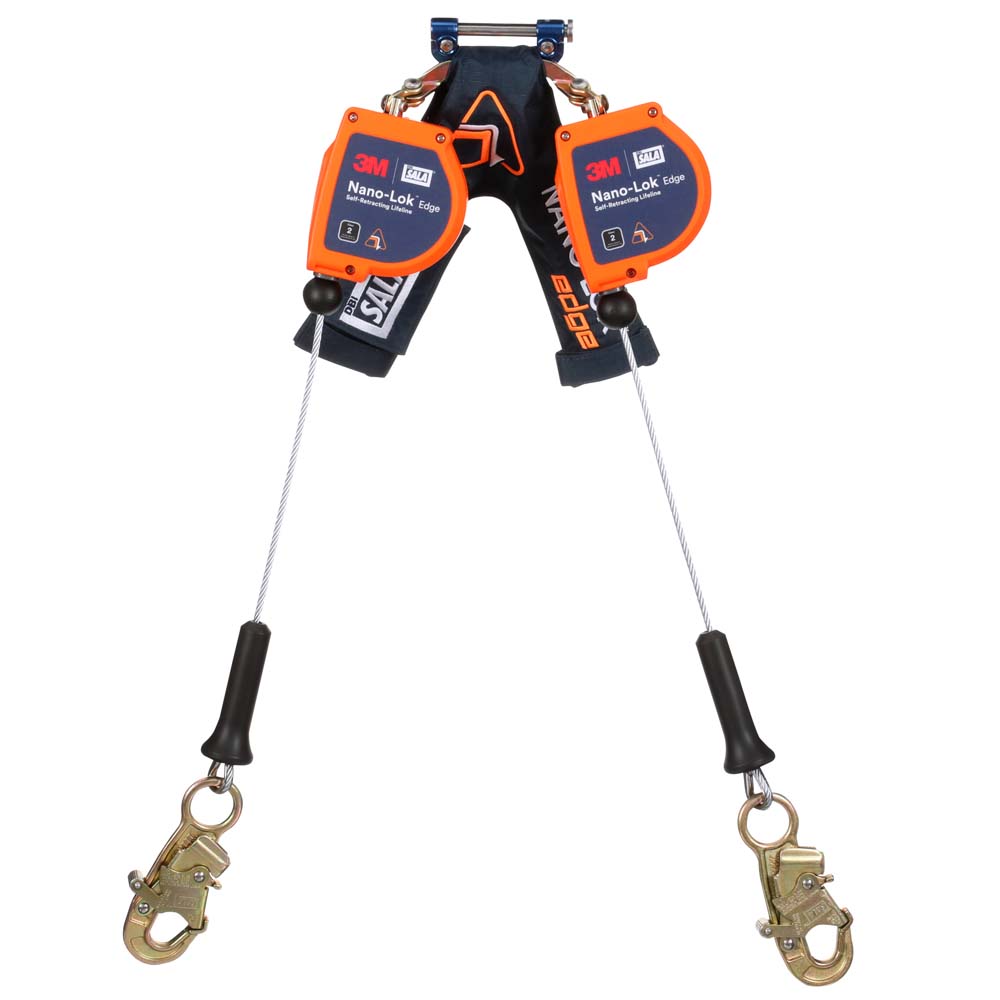

- Steel Snap Hook (3500279)

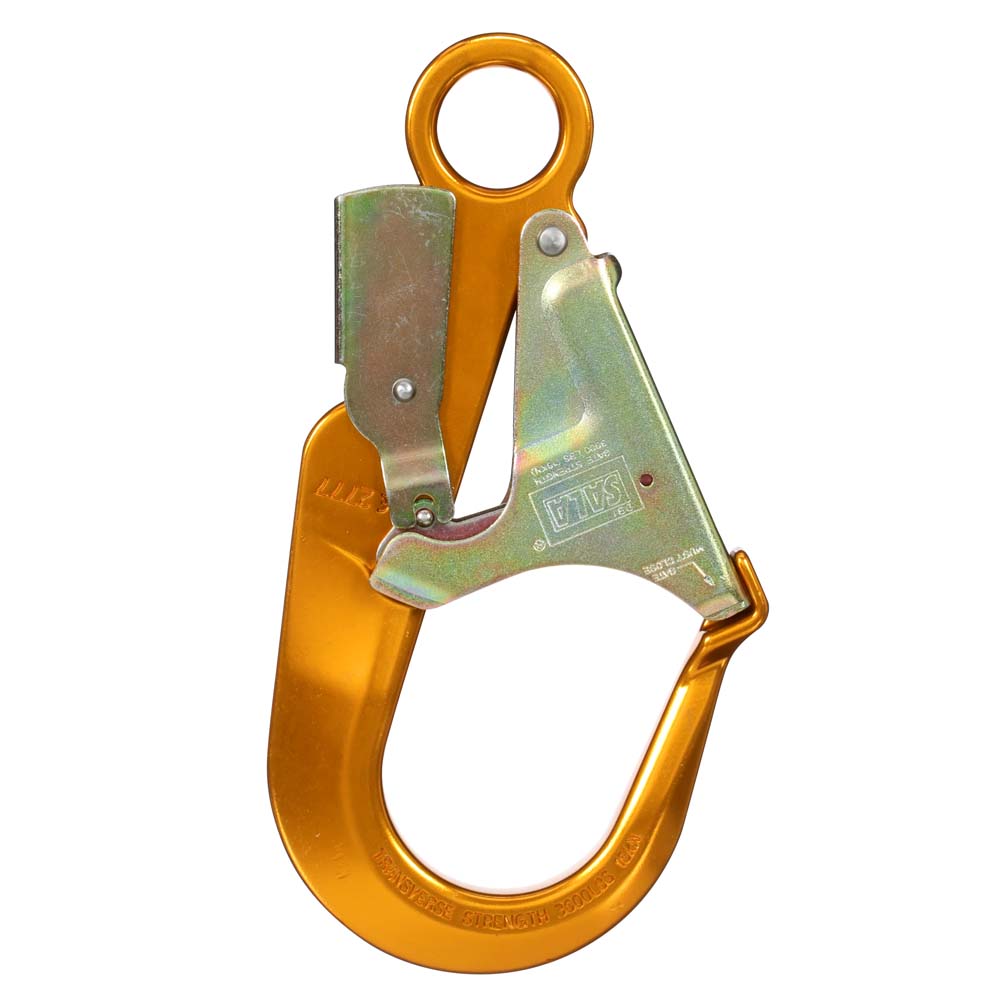

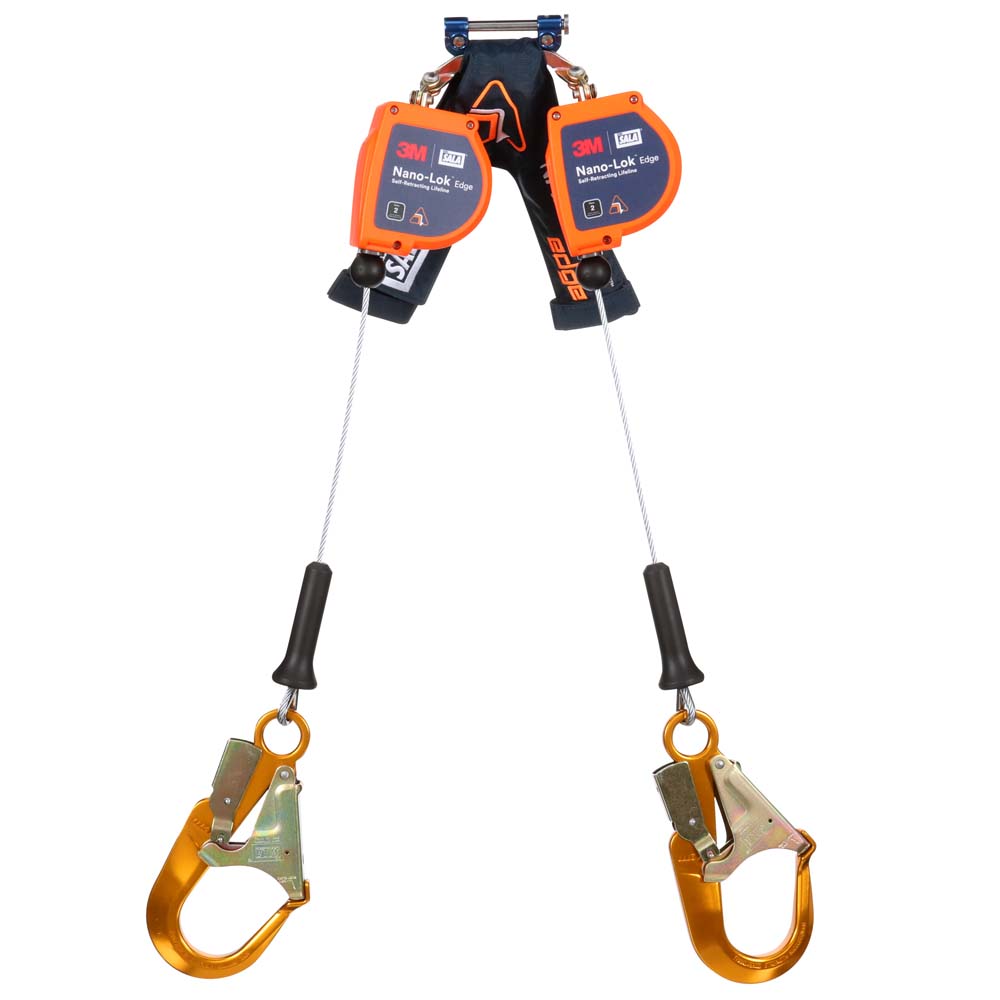

- Aluminum Rebar Hook (3500280)

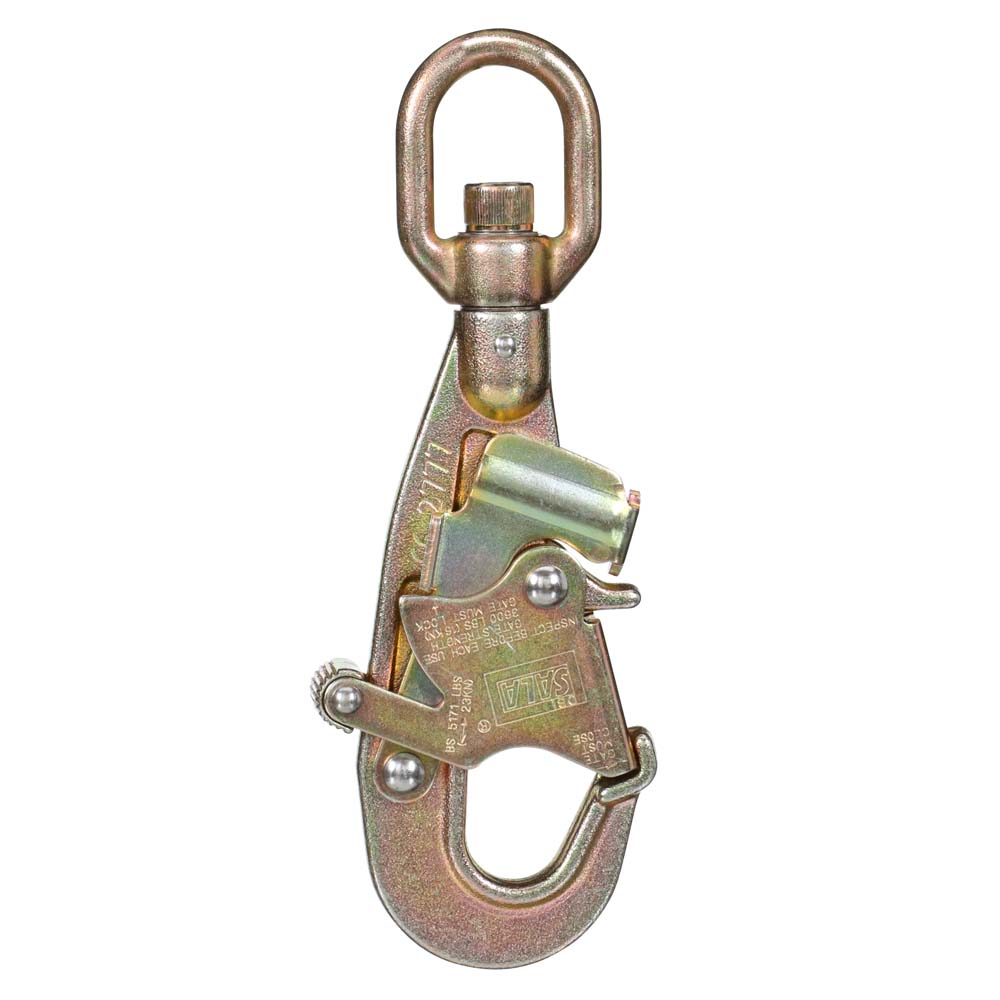

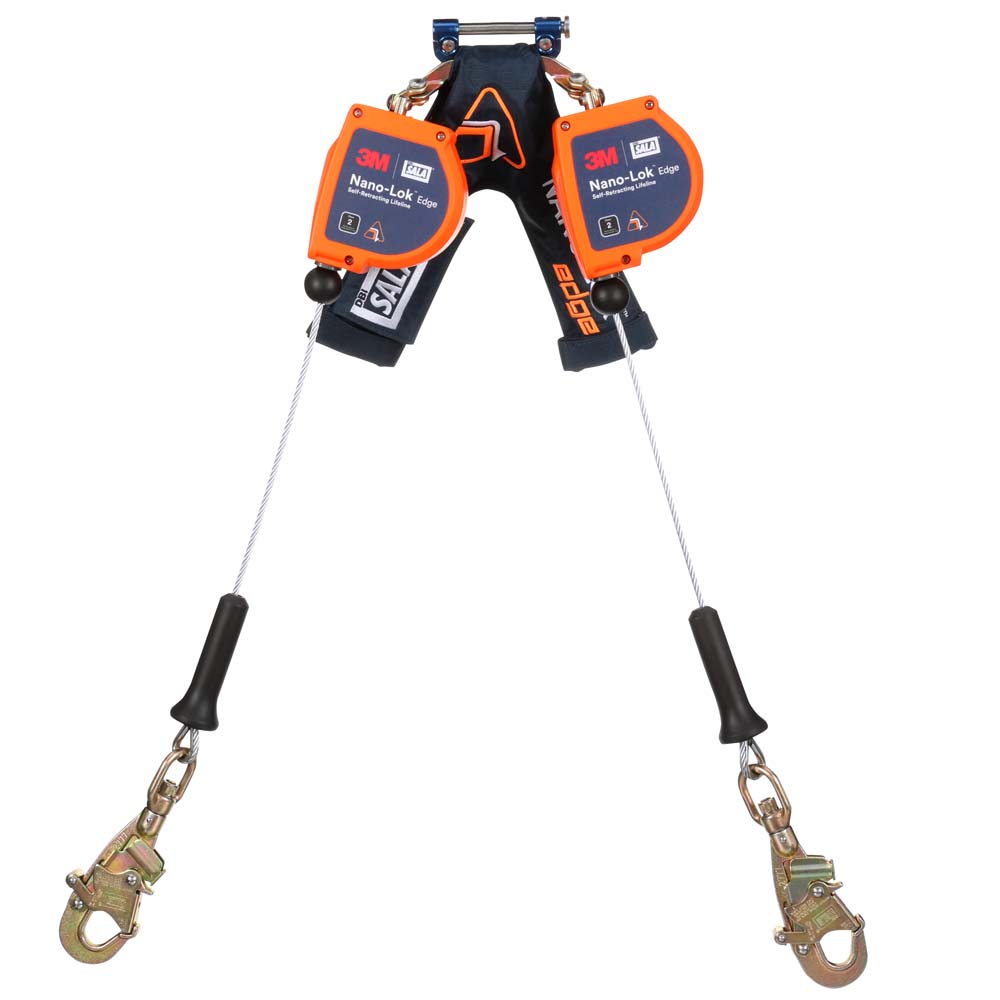

- Steel Swivel Snap Hook (3500282)

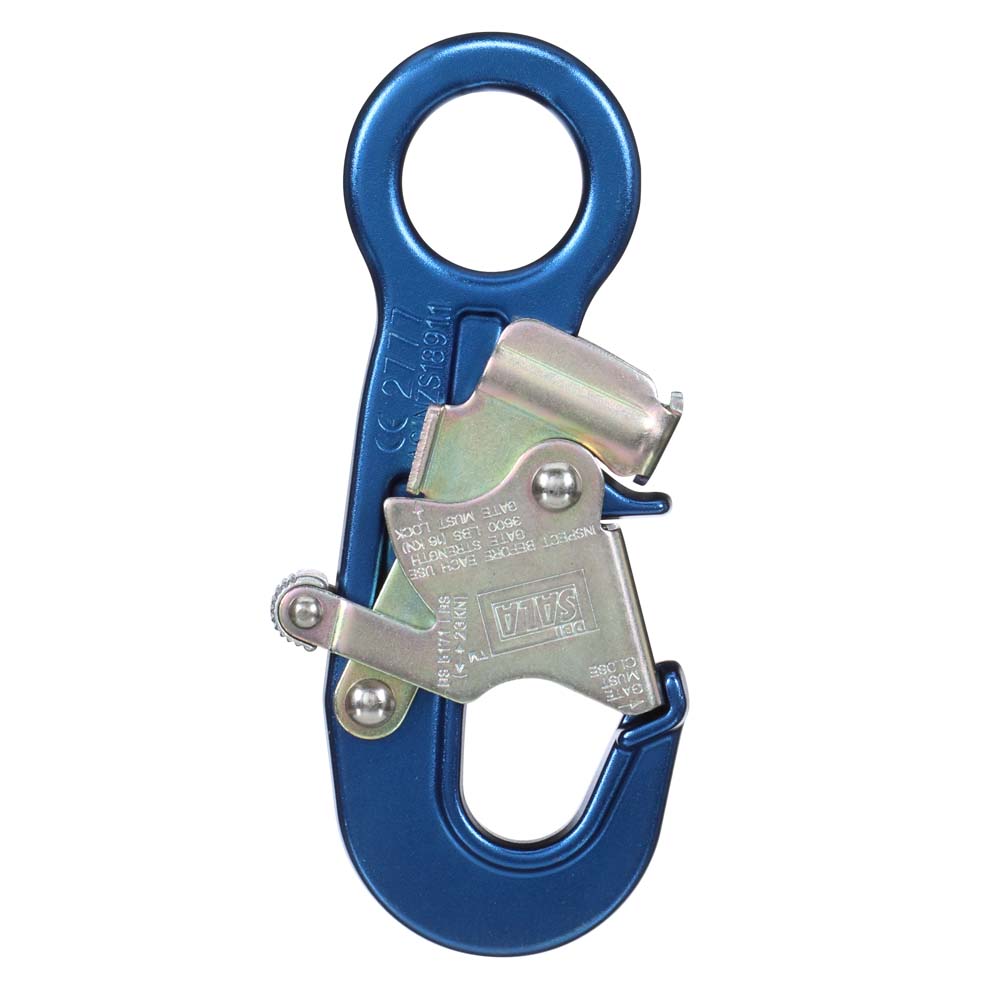

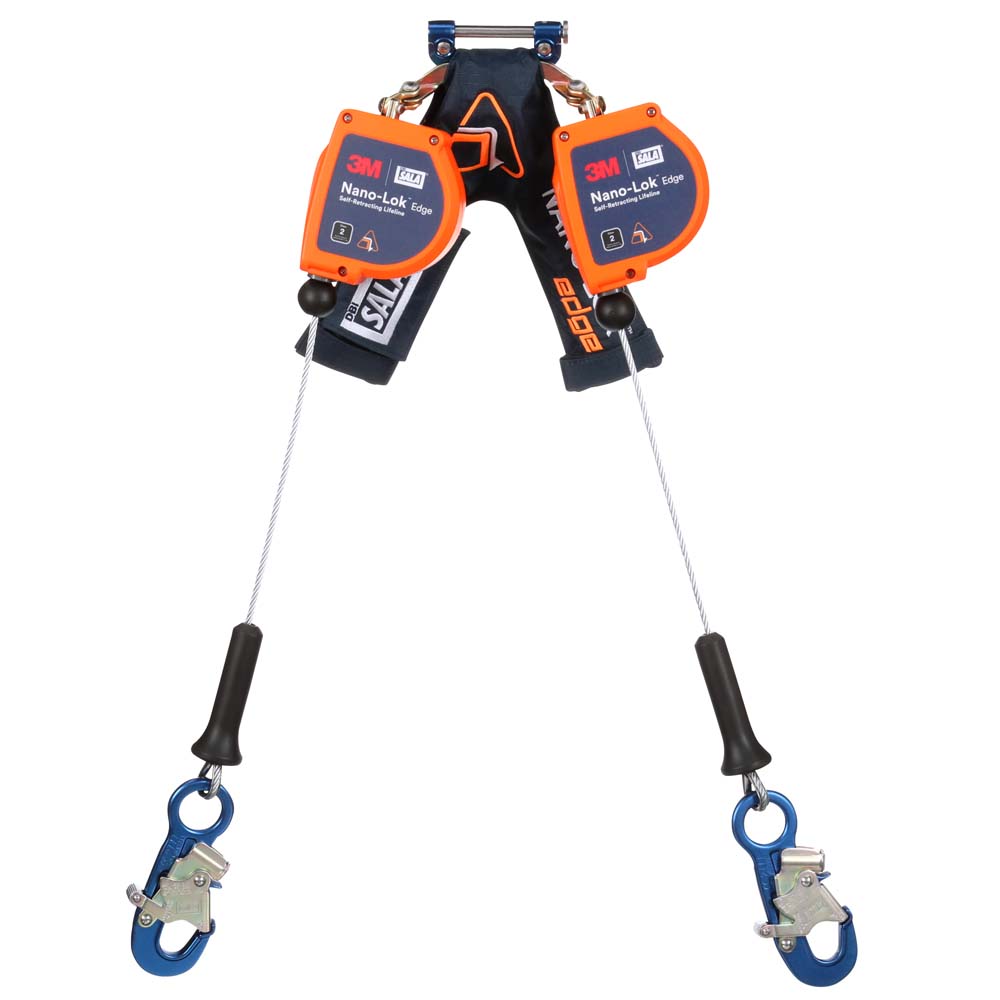

- Aluminum Snap Hook (3500285)

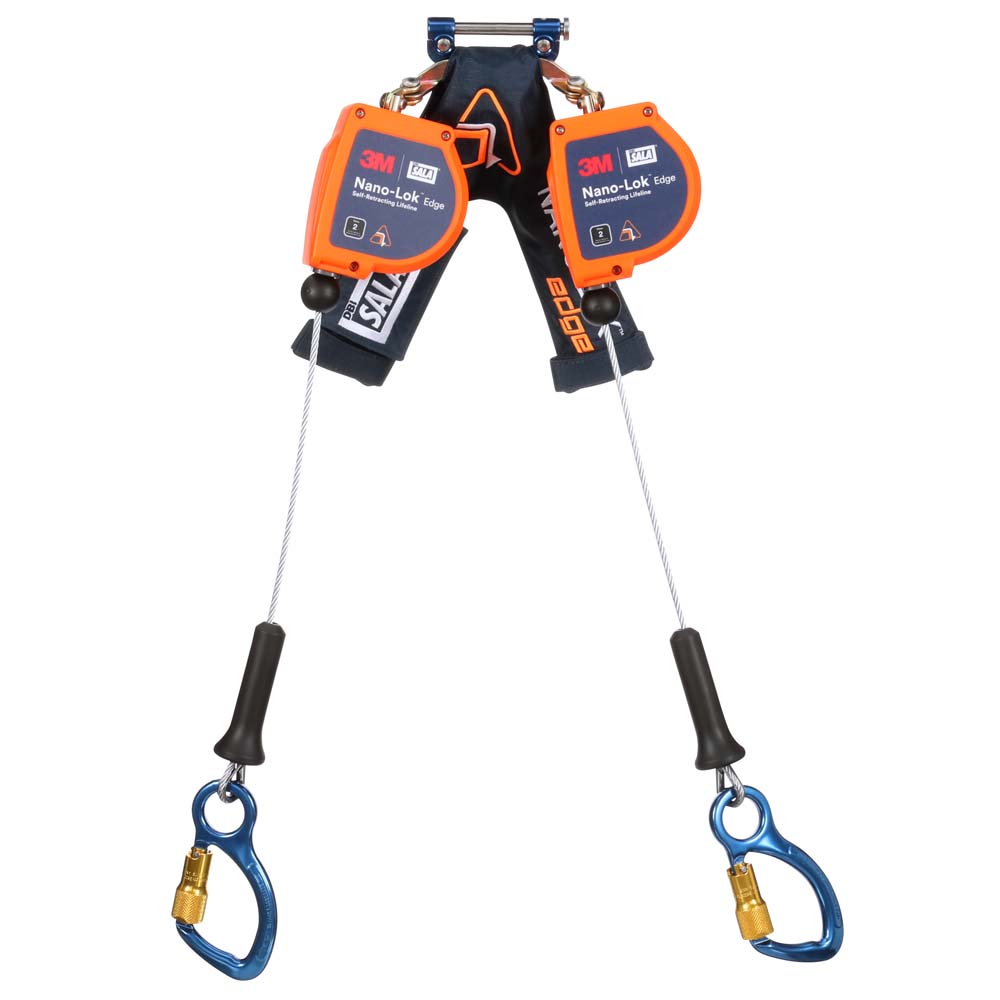

- Aluminum Carabiner (3500286)
C-DS-3500276
Capacity: | 420 lbs (190 kg) |
Class: | ANSI Class 2 |
Color: | Orange |
Length: | 8' |
Lifeline Material: | Galvanized Cable |
Manufacturer: | 3M | DBI SALA |
Material: |
Nylon Thermoplastic Stainless Steel |
Standards: |
29 CFR OSHA 1910.140 29 CFR OSHA 1926.502 ANSI/ASSP Z359.14-2021 |
DS-3500276
DS-3500277
DS-3500279
DS-3500280
DS-3500282
DS-3500285
DS-3500286
