Model#: C-CY-1018428
Stock#: C-CY-1018428
Crosby S-209 Self-Colored Screw Pin Shackles
Multiple Options Available
$13.99 to $231.00 Sale price: $13.99 to $231.00
FREE SHIPPING OVER $75!
Please select an option below

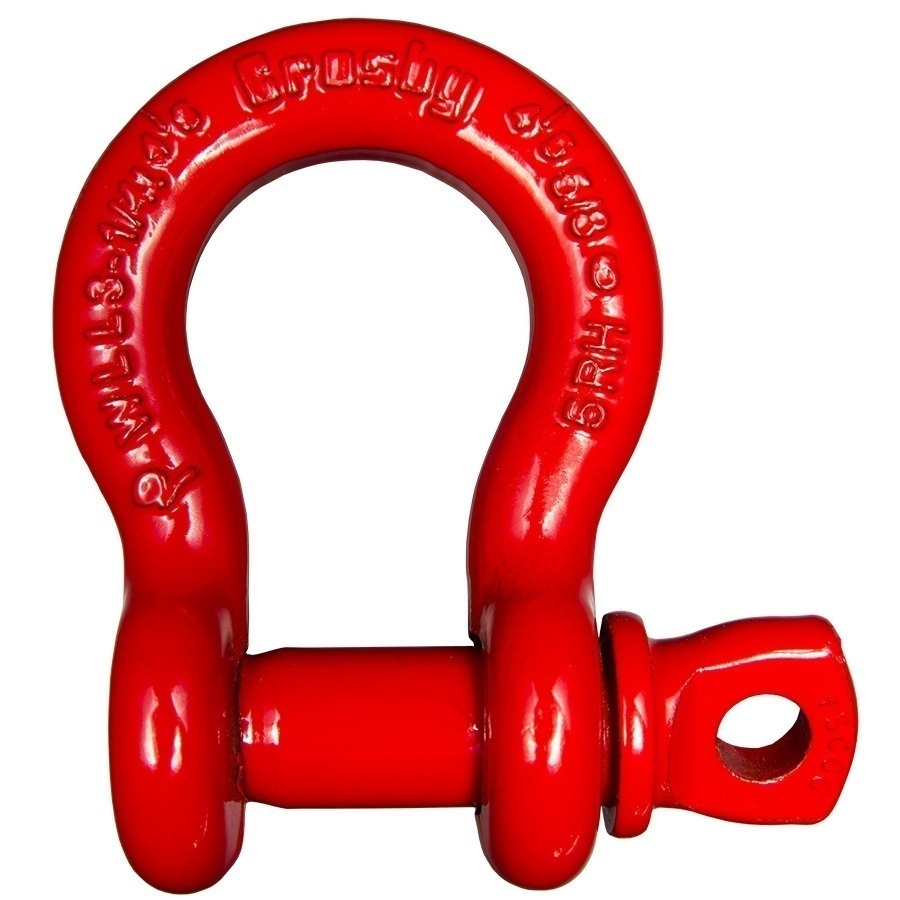

Crosby S-209 Self-Colored Screw Pin Shackles
Crosby's Screw Pin Shackles feature the working load limit and grade "6" permanently marked on each. These Crosby shackles are quenched and tempered, and fatigue rated to offer strength and durability for lifting applications. Crosby Shackles and clevises meet the requirements of the Federal Specification RR-C-271D, Type IVA.
Crosby Self-Colored S-209 Screw Pin Shackle Chart
Available Options:
|
PART |
DIAMETER |
WLL |
WEIGHT |
|
1018428 |
3/8” |
1 ton |
0.31 lbs |
|
1018464 |
1/2” |
2 tons |
0.72 lbs |
|
1018482 |
5/8” |
3.25 tons |
1.37 lbs |
|
1018507 |
3/4” |
4.75 tons |
2.35 lbs |
|
1018525 |
7/8” |
6.5 tons |
3.62 lbs |
|
1018543 |
1” |
8.5 tons |
5.03 lbs |
|
1018561 |
1-1/8” |
9.5 tons |
7.41 lbs |
|
1018589 |
1-1/4” |
12 tons |
9.5 lbs |
|
1018605 |
1-3/8” |
13.5 tons |
13.53 lbs |
Other Crosby Shackles:
C-CY-1018428
| Configurable Model: | None |
| Manufacturer: | Crosby |
