Model#: 50101-G-02
Stock#: SETE-50101-G-02
Catalog#: 32R

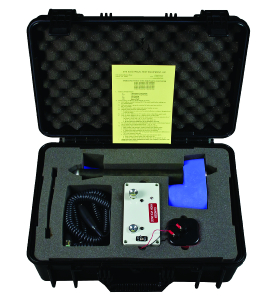

STB Phasing Voltmeter/Sensor (0-25kV)
SETE-50101-G-02
$2,296.99 Sale price: $2,296.99
THIS ITEM SHIPS FOR FREE!
ON BACKORDER
Call for availability
- Does not include Hot Sticks
- STB Part# 50101-G-02
- STB unit replaces 3 separate units manufactured by competitors - line phasing, capacitance phasing and line to ground
- Versatile, lightweight and easy to use
- Each portable meter has a single range
- Meter usage: Voltage detection and phasing at capacitance test points or voltage detection and phasing on bare energized conductors (overhead & underground)
- Probes can be separated to be used as a voltage sensor or capacitance sensor
- Five position selector switch used to select voltage sensing on capacitance tap or direct line and phasing on capacitance tap, direct line or a battery test position
- No exposed conducting terminals or meter circuitry
- Locking cable connector provides positive contact
- Scale is large enough to be easily read 8'-10' when mounted on a suitable hot stick
- Line to ground voltage readings are accurate within 3% at full scale
- Maximum operating temperature range -20°F to 165°F (-30°C to 75°C)
- 25' coiled cable included
- Does not include Hot Sticks
- STB Part# 50101-G-02
- STB unit replaces 3 separate units manufactured by competitors - line phasing, capacitance phasing and line to ground
- Versatile, lightweight and easy to use
- Each portable meter has a single range
- Meter usage: Voltage detection and phasing at capacitance test points or voltage detection and phasing on bare energized conductors (overhead & underground)
- Probes can be separated to be used as a voltage sensor or capacitance sensor
- Five position selector switch used to select voltage sensing on capacitance tap or direct line and phasing on capacitance tap, direct line or a battery test position
- No exposed conducting terminals or meter circuitry
- Locking cable connector provides positive contact
- Scale is large enough to be easily read 8'-10' when mounted on a suitable hot stick
- Line to ground voltage readings are accurate within 3% at full scale
- Maximum operating temperature range -20°F to 165°F (-30°C to 75°C)
- 25' coiled cable included
SETE-50101-G-02
| Manufacturer: | STB Electrical |
| Weight: | 14.12 |
