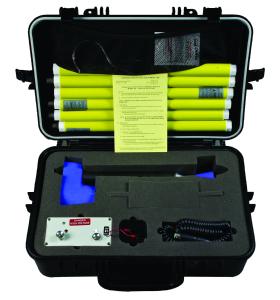

STB Phasing Voltmeter/Sensor with Hot Sticks (0-25kV)

STB Phasing Voltmeter/Sensor with Hot Sticks (0-25kV)

- Includes full set of Hot Sticks
- STB Part# 50101-G-03
- STB unit replaces 3 separate units manufactured by competitors - line phasing, capacitance phasing and line to ground
- Versatile, lightweight and easy to use
- Each portable meter has a single range
- Meter usage: Voltage detection and phasing at capacitance test points or voltage detection and phasing on bare energized conductors (overhead & underground)
- Probes can be separated to be used as a voltage sensor or capacitance sensor
- Five position selector switch used to select voltage sensing on capacitance tap or direct line and phasing on capacitance tap, direct line or a battery test position
- No exposed conducting terminals or meter circuitry
- Locking cable connector provides positive contact
- Scale is large enough to be easily read 8'-10' when mounted on a suitable hot stick
- Line to ground voltage readings are accurate within 3% at full scale
- Maximum operating temperature range -20°F to 165°F (-30°C to 75°C)
- 25' coiled cable included
